MEDIUM LINE FORMWORK

SPECIFICATIONS

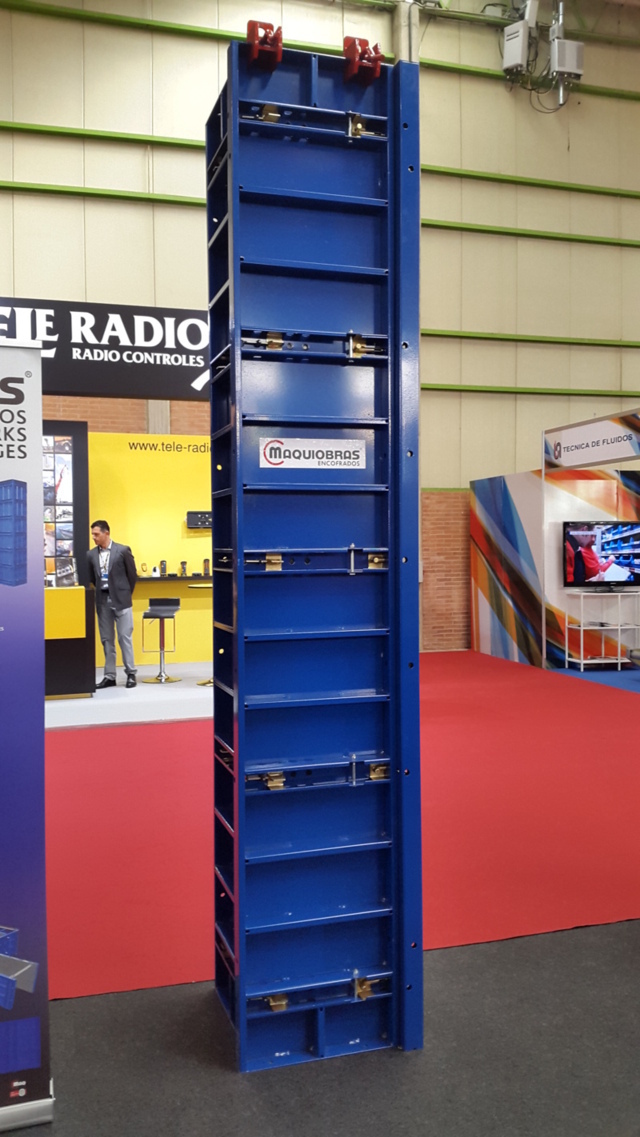

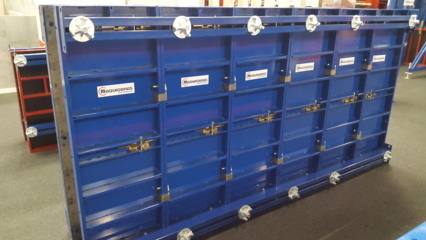

Semi-light metal formwork Medium designed for to build different sizes of columns, both square and rectangular. The still sheet has a thickness of 3 mm, providing with the panel frame a great resistance and durability. The panel has a concrete pressure resistance of 75 KN/m2. The closing system is integrated in the main panel avoiding its loss.. The panels can be combined with each other to get different kinds of columns sections: from 25 to 45 with the panel of 50 cm from 25 to 70 cm with the panel of 75 cm.

ACCESSORIES
Medium Line Elevation Cramp
Accessory for hoisting panels using a crane.  It can pick up one or more panels at once.
Plastic Stopper Ø 18
Plug for blocking the holes of the actual plate to prevent the concrete from leaking.
Bolt & wedge key for assembling
Bolt & wedge key for assembling two panels vertically.  Each panel must have two key bolts
Medium Line Fitting
Junction between panels for the construction of longitudinal walls.

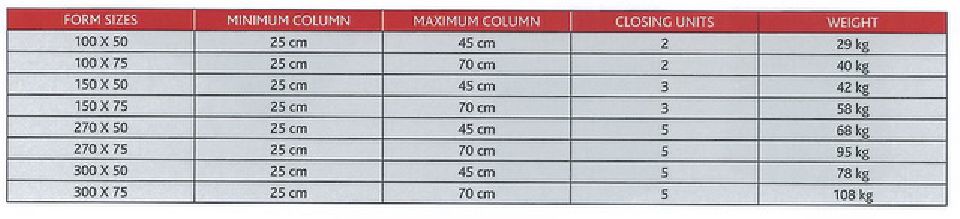

STANDARD MEASURES
MEASURES CM.

SPARES

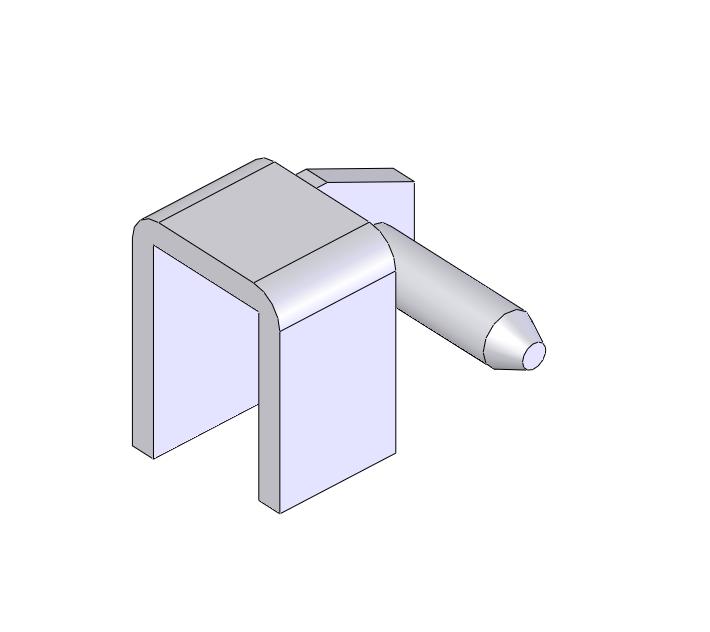

Medium Line Bolt
Bolt used with the matching wedge of the opposite panel to join the panels and shape the column.

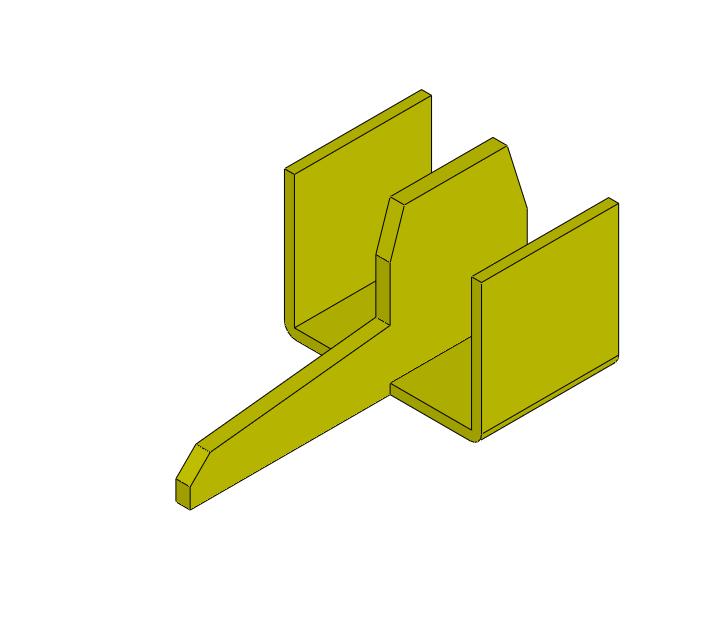

Medium Line Wedge
Wedge used with the matching bolt of the opposite panel to join the panels and shape the column.
Limit Screw
This Screw incorporated to the panel avoids the lost of wedge and bolt.
