| SPECIFICATIONS |
 |
| |

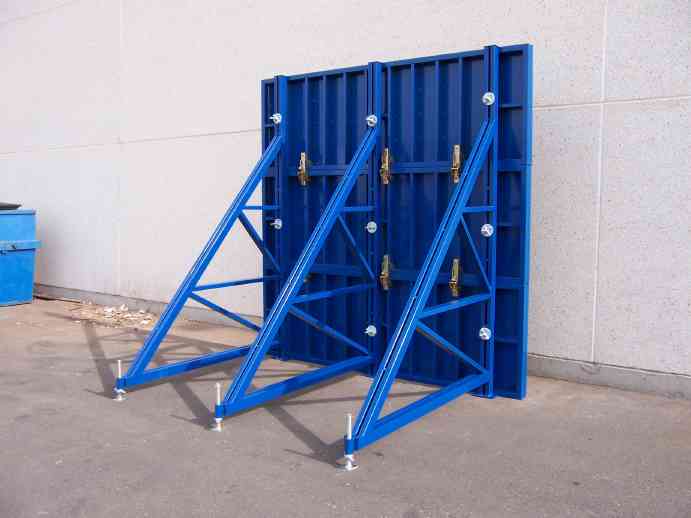

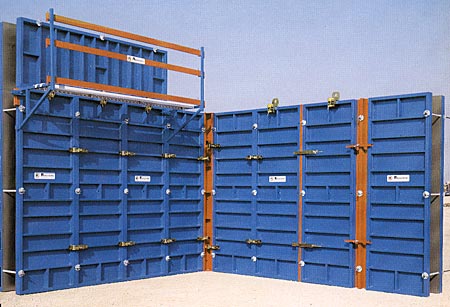

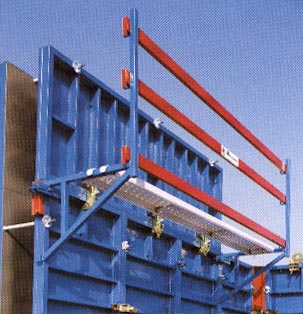

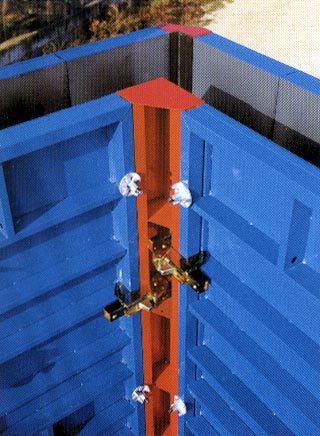

Walls and columns range extension consisting on a combination of a metallic frame electrically welded to a 3mm. metallic plate. This system solved the form of both walls and pillars with economic saving. This system is very easy and quick to assembly and guarantees a concrete pressure resistance of 60 KN/m2 with high quality face wall finishes. It?s completely compatible with the Wood-Metal line forms and with all its complements and accessories This variety of elements helps facilitate and resolve any challenge that may come up during a building project. |
| ATTACHMENTS |
 |
| ACCESSORIES |
|
 |

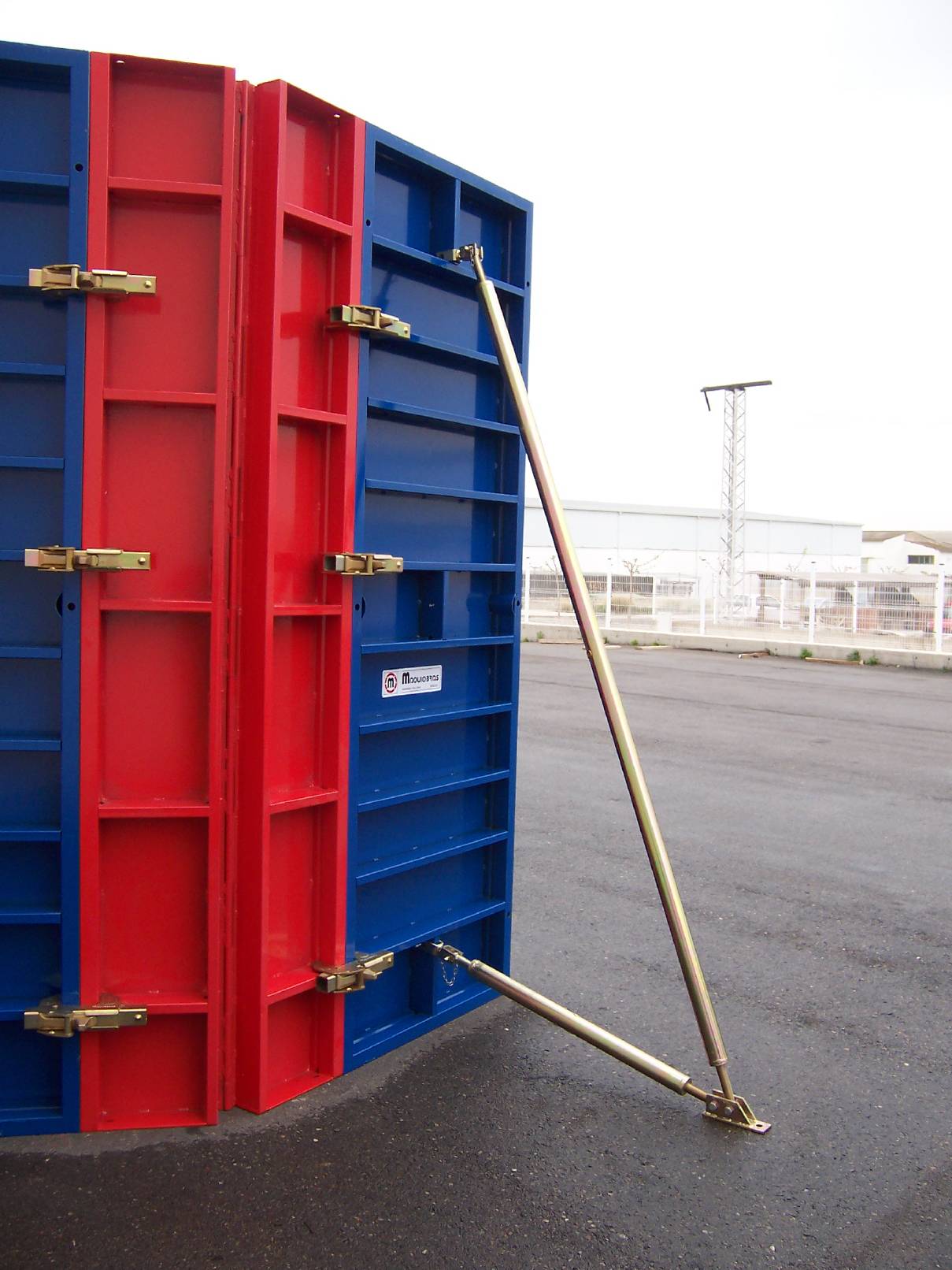

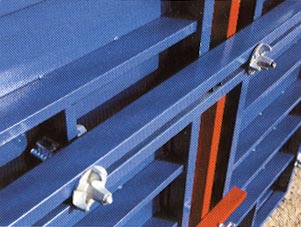

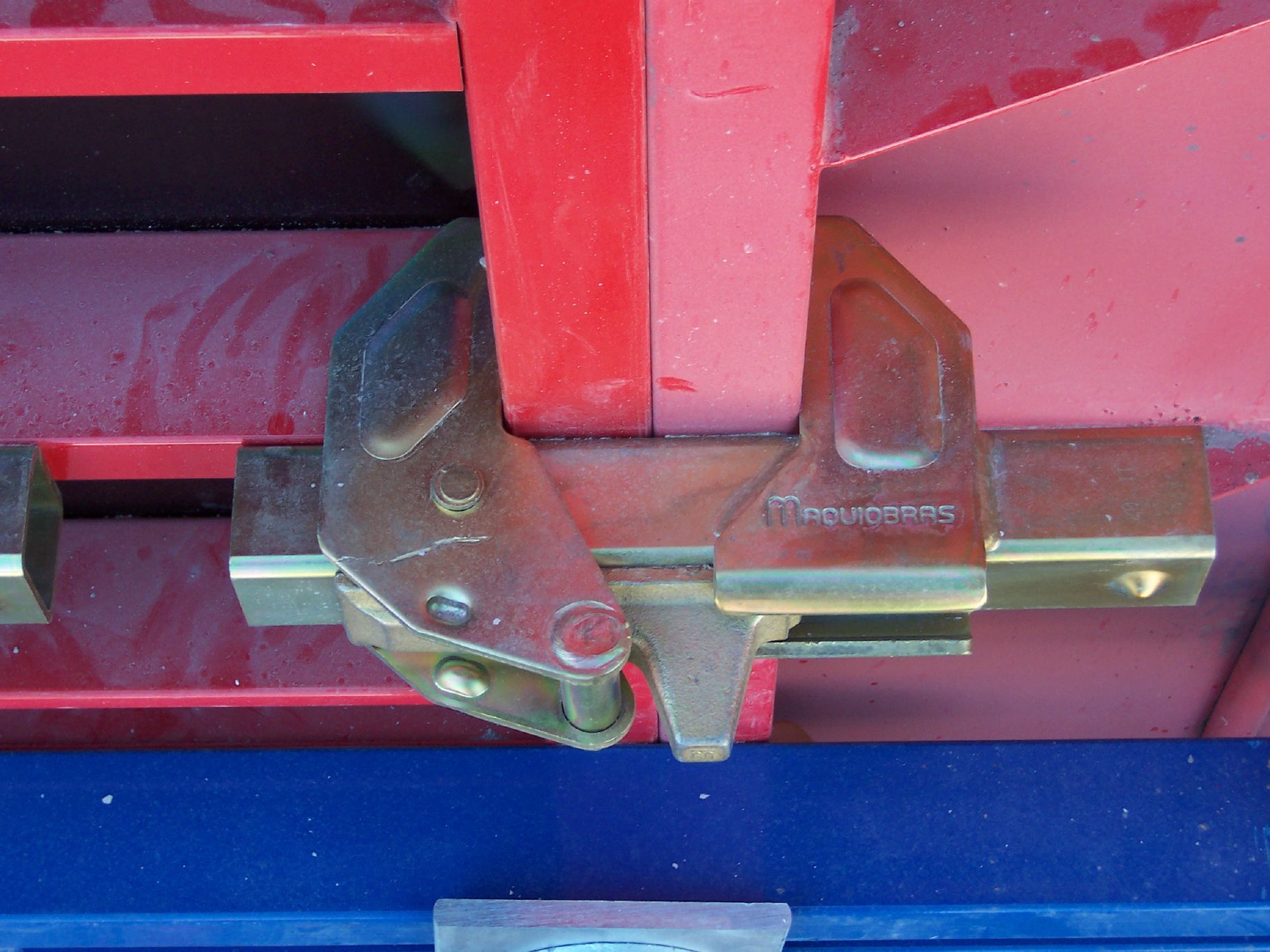

Alignment Cramp
Wrench used to join two panels together, which can withstand the compression the concrete exerts on said panels. |
|
|
 |
Adjustable Cramp
Special wrench for attachment between panels when the space between them does not allow the alignment wrench to be used. |
|
|
 |

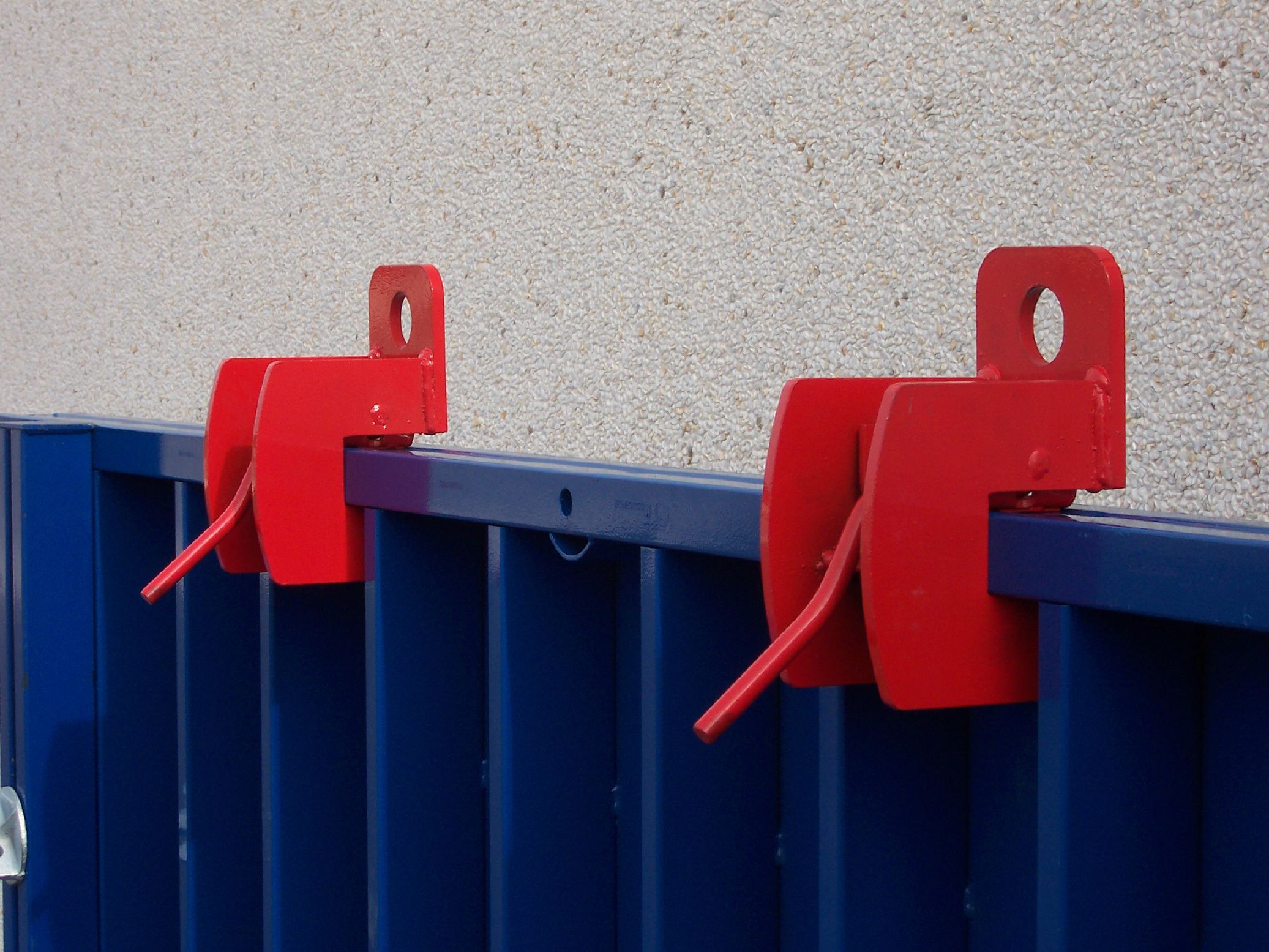

Elevation Cramp
Accessory for hoisting panels using a crane. It can pick up one or more panels at once. |
|
|
 |

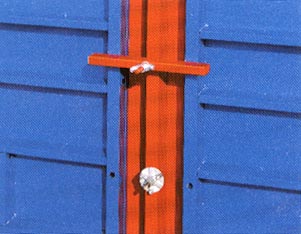

Bean Fastening Fitting
Part used together with the hexagonal nut and the fixed-plate nut to attach the stiffening beam to the panels.
|
|
|
 |

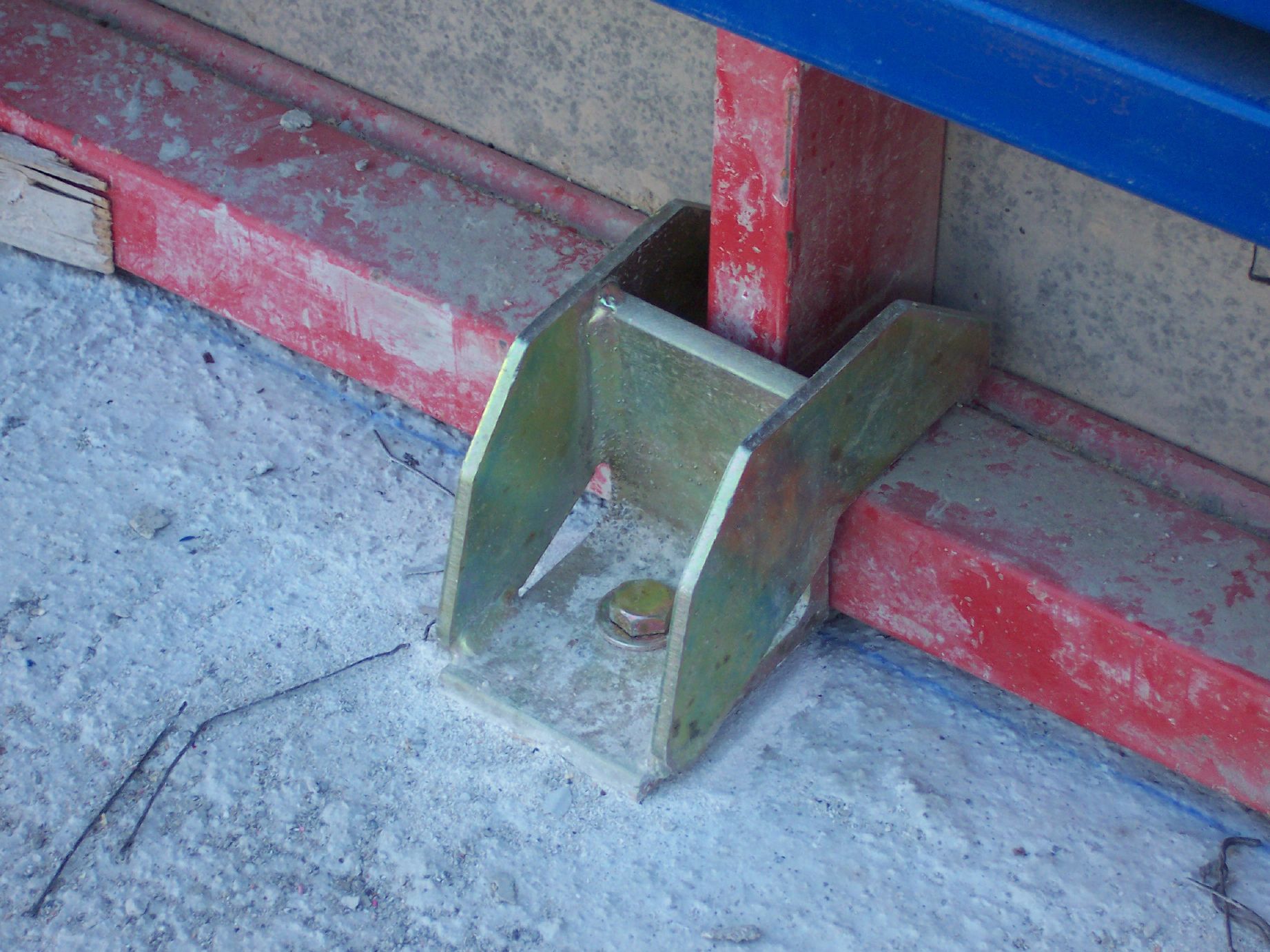

Floor Achorage
Anchorage that allows fixing the bottom part of the panel to the floor avoiding that it rises. It is adjusted to the floor with metallic rawls.
|
|
|
 |

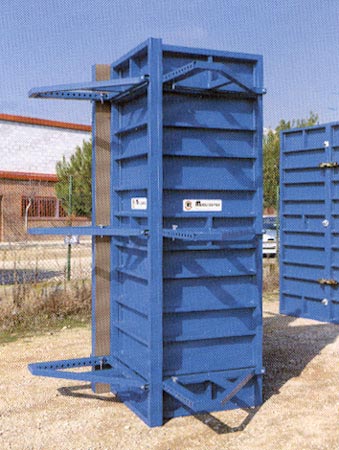

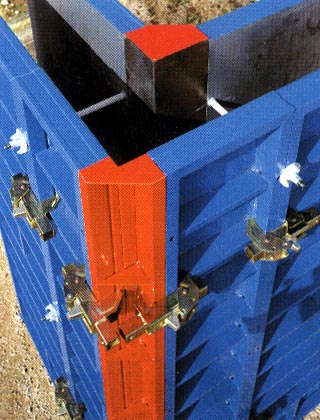

Column Closing Square
Under request we can produce drilled panels to shape different columns to the desired size bu using the column closing squares and Fixed Plate Nuts to reinforce the pillars.
|
|
|
 |

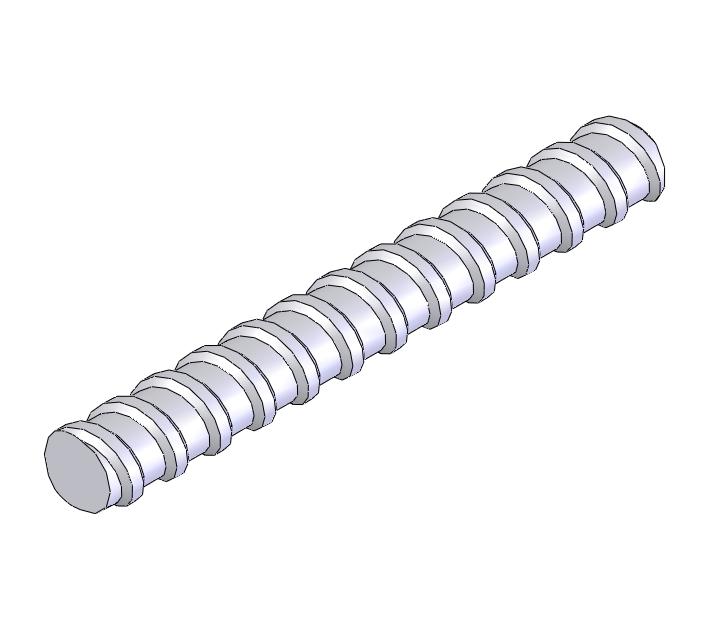

Diwidag Rod Ø 17
It is in charge, together with the fixed-plate nut, of withstanding the compression the concrete exerts on the panels.
|
|
|
 |
Diwidag Rod Ø 22
It is in charge, together with the permanent anchor, of withstanding the compression the concrete exerts on the reinforcement beam in the leveling supports. |
|
|
 |

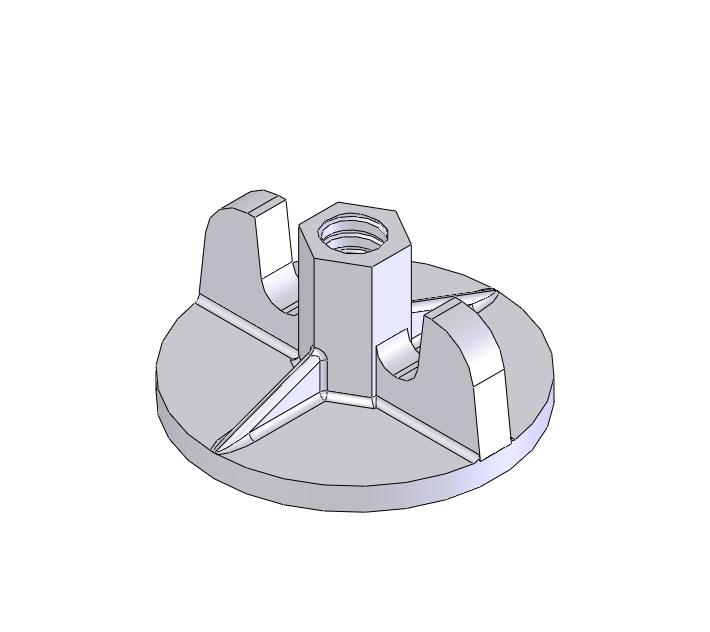

Fixed Plate Nut Ø 17/100
It is in charge, together with the 17-mm Dywidag tie rod, of withstanding the compression the concrete exerts on the panels. |
|
|
 |

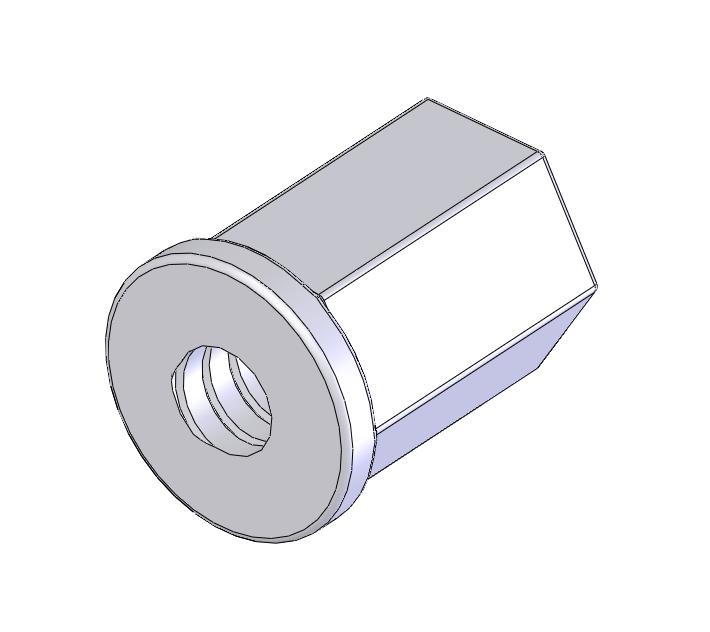

Hexagonal Nut Ø 17
It is in charge, together with the 17-mm Dywidag tie rod, of withstanding the compression the concrete exerts on the panels. It is mainly installed when the panels are placed horizontally, on the floor section. |
|
|
 |

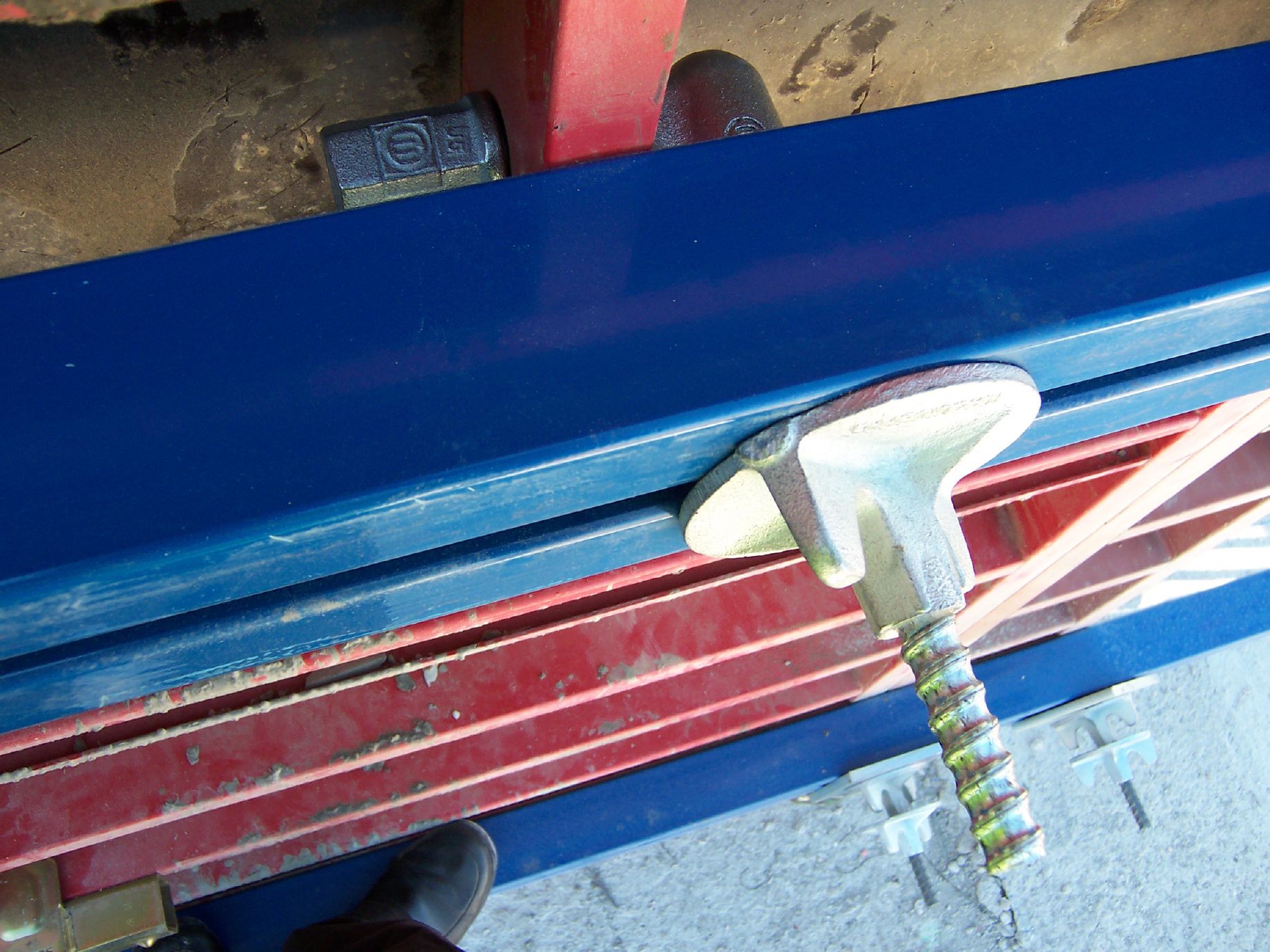

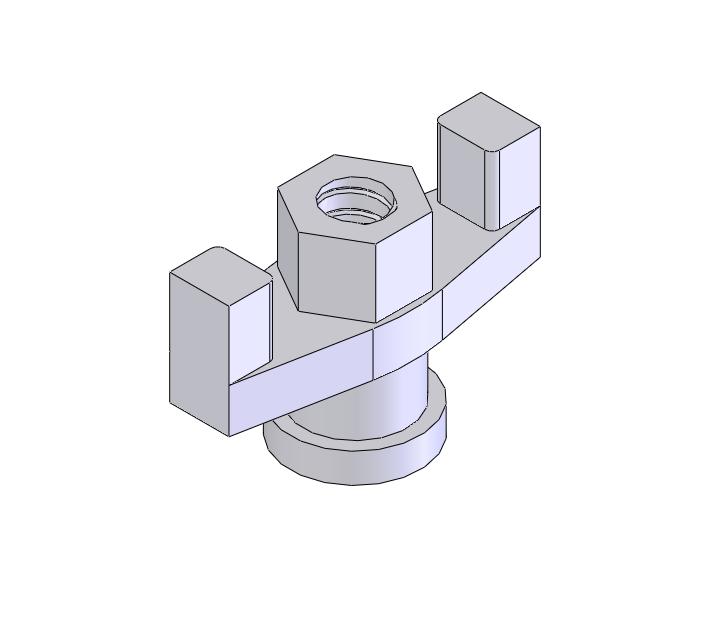

Vikingo Nut Ø 17
It is in charge, together with the Dywidag tie rod, of withstanding the compression the concrete exerts on the panels. |
|
|
 |
Vikingo Nut Ø 22
It is in charge, together with the Dywidag tie rod, of withstanding the compression the concrete exerts on the reinforcement beam in the leveling supports. |
|
|
 |

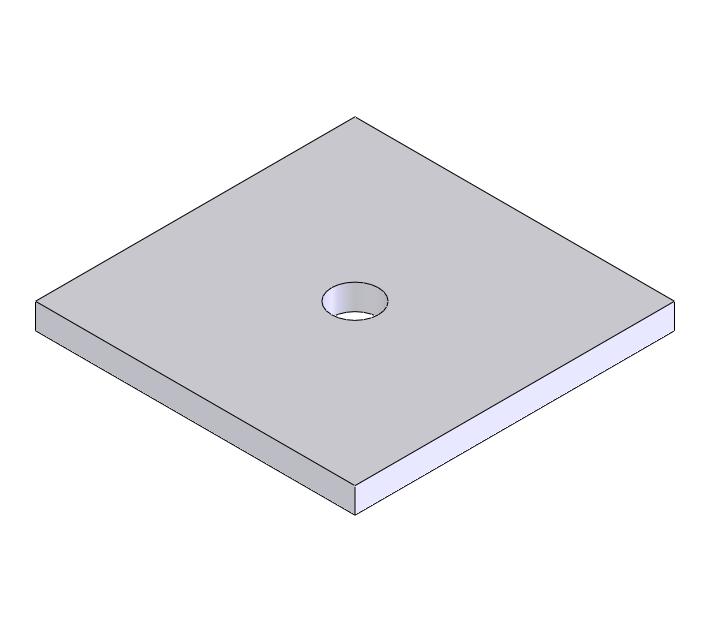

Plate of Seat Ø 17/120
Acts as a reinforcement when the wing nut or the hexagonal nut are installed
|
|
|
 |

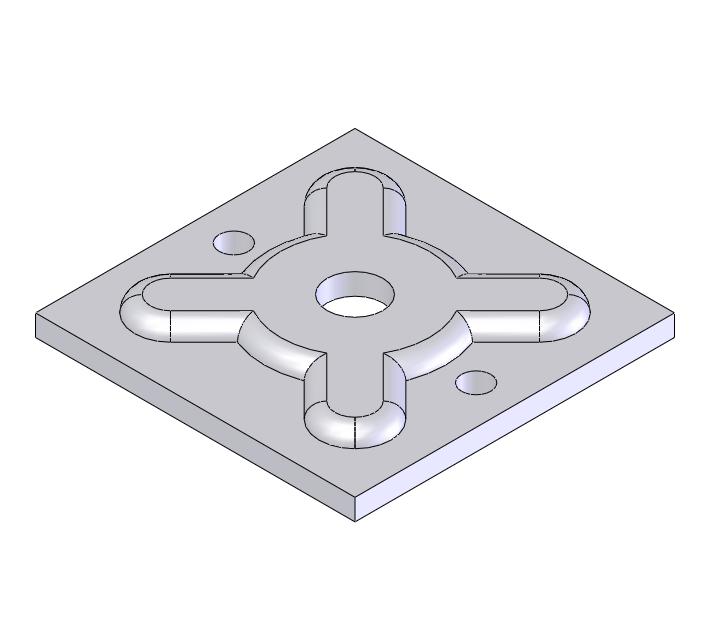

Plate of Seat Ø 22/150
Accessory placed on the reinforcement beam on the leveling support on which the 22-mm wing nut rests. |
|
|
 |

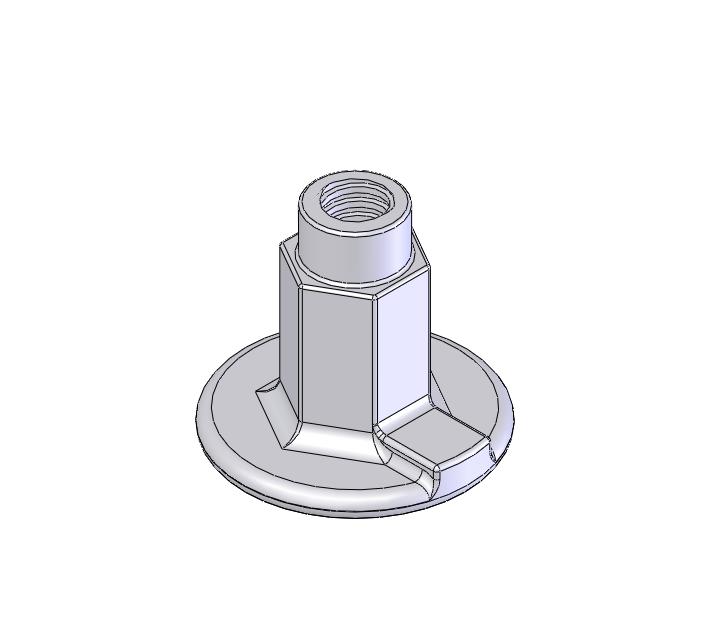

Anchor for Supporting Girder Ø 22
Special nut for the construction of walls with permanent leveling support It is used before placing the footing. |
|
|
 |

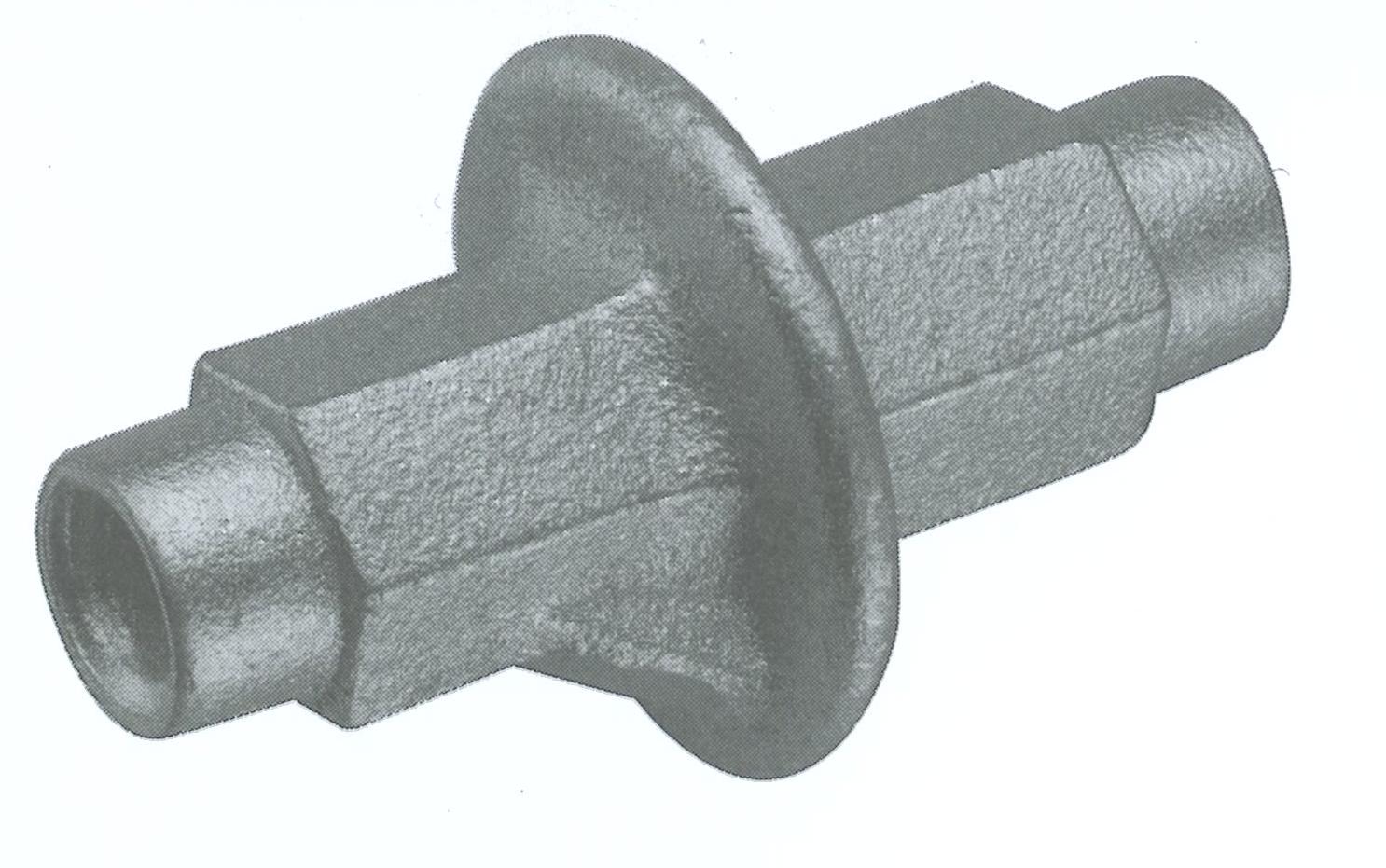

Watertight Joint Ø 17
Non-recoverable nuts that remain inside the Diwidag Rod holes (for example in water deposits) to get watertight with no need to fill them up.
|
|
|
 |

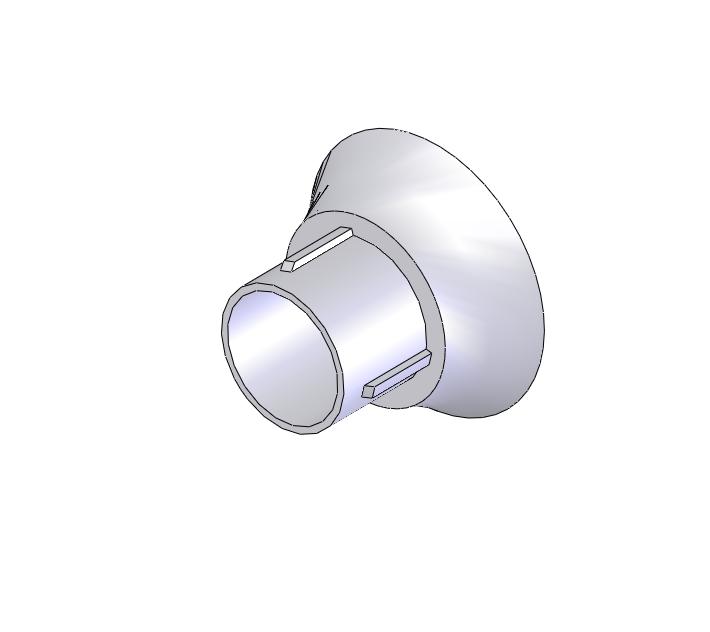

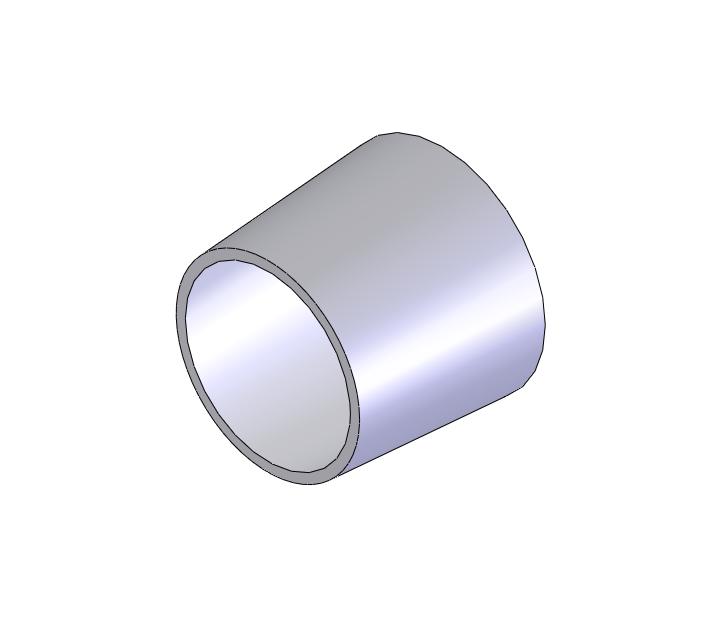

Plastic Cone
This cone is used as an end plate on either side of the pipe to prevent it from digging into the wood of the panel and so that it can withstand the pressure exerted on the tube when squeezed.
|
|
|
 |
Plastic Stopper Ø 20
Plug for blocking the hole in the panel when the Dywidag tie rod does not need to be inserted to prevent the concrete from leaking. |
|
|
 |

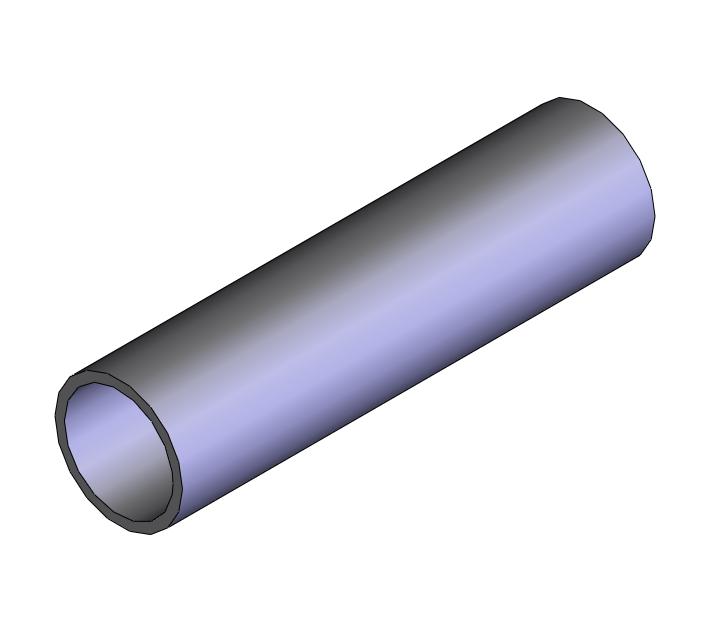

PVC Sheath
Plastic pipe used to recover the Dywidag tie rod when building walls with double facing, which is left permanent. |
|
|
|
| STANDARD MEASURES |
|
MEASURES M.
|
|
|
